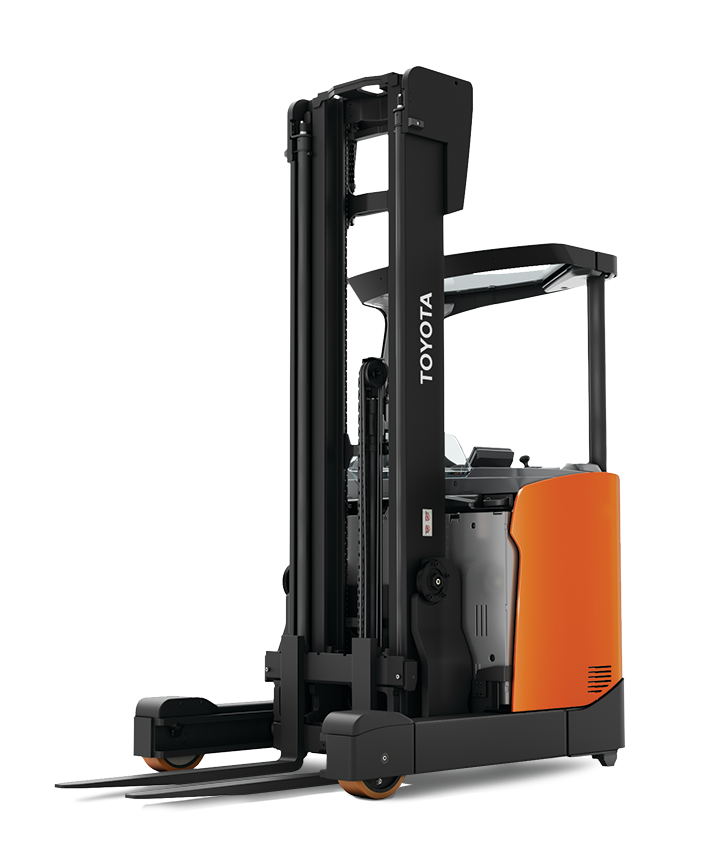

Moving Mast Reach Truck

With a max lift height of 512 inches, Toyota’s Moving Mast Reach Truck offers clear and precise control for fast and smooth handling shift after shift. With a unique optional tilting cab system, your operators not only have a clear view of their load, which can reduce the risk of neck and shoulder straining at high-level applications, but it allows for faster and more accurate fork positioning. With the trend of warehouses continuing to build upward due to space constraints, the Moving Mast Reach Truck is designed to deliver the perfect fit for your operation’s needs.

Download the spec/info sheet

An Operators Dream

Engineered for performance at height, the optional tilting cab, combined with the optional transparent roof and unique mast design, offers exceptional load visibility. The programmable tilting cab system suits each operator’s preferences, increasing comfort and boosting productivity. Operators will love the fully adjustable cabin, featuring an adjustable seat, control handle, armrest, steering console, and more. The cabin floor quickly adjusts to improve operator comfort and support. A new optional air-suspension seat makes sure operators can complete their heavy lifting with ease.

Interactive Touchscreen Display

Each Toyota Moving Mast Reach Truck comes standard with an intuitive touchscreen display that includes optional functions like lift height and warnings for overload.

  • DRIVE CONTROL: AUTOMATIC SPEED CONTROL, OPTIONAL FORK LEVELING, AND CENTERING
  • OPTIONAL LIFT MODE: THE DRIVER WILL GET CONTINUOUS UPDATES ON LIFT HEIGHT, LOAD WEIGHT, AND FORK ALIGNMENT
  • CUSTOMIZABLE PERFORMANCE AND OPERATING CHARACTERISTICS TO MEET YOUR OPERATION’S NEEDS

360-DEGREES OF QUALITY, DURABILITY, RELIABILITY & VALUE

  • 360-DEGREE STEERING
  • INTERACTIVE TOUCHSCREEN DISPLAY
  • FULLY ADJUSTABLE OPERATOR COMPARTMENT
  • TILTING CAB OPTION

MOVING MAST REACH TRUCK

MODEL NUMBER LOAD CAPACITY* (LBS.) MAX. TRAVEL SPEED FULL LOAD (MPH) MAX. LIFT SPEED FULL LOAD (FPM) MAX. GRADEABILITY FULL LOAD (%) BASIC RIGHT ANGLE STACK** (IN.)
RRE140H 3,000 6.4 74.8 10 N/A
RRE160H 3,500 6.2 74.8 10 N/A
RRE180H 3,900 6.8 90.6 10 N/A
RRE200H 4,400 6.8 84.6 10 N/A
RRE250H 5,500 6.8 72.8 7 N/A

MOVING MAST REACH TRUCK’S TILTING CAB

The Moving Mast Reach Truck’s unique tilting cab is helpful for operators to be more precise, as well as an ergonomic solution for challenging situations.

  • FORWARD TILT: UP TO 2 DEGREES
  • BACKWARD TILT: UP TO 4 DEGREES
  • PROGRAMMABLE TO SUIT OPERATOR’S PREFERENCE
  • REDUCE RISK OF OPERATOR STRAIN
  • OFFERS CLEAR VIEW AT HEIGHT

WORLD-CLASS MATERIAL HANDLING SOLUTIONS

With access to the world’s industry-leading lineup of reach trucks and warehouse products, Toyota dealers are uniquely positioned to help you solve wide-ranging challenges in warehousing and distribution. Built for every application, Toyota can provide the most complete set of solutions for material handling, automation, energy, advanced logistics, and warehouse optimization.

Toyota is here to help your business be the best. Utilizing Toyota Lean Management principles, Toyota dealers can help optimize your business by providing insights and developing appropriate plans to tackle your business’ specific needs.

This unique approach to optimization and elimination of waste can provide you with significant competitive advantages and a sustainable lean culture for lasting process improvement.
