The new Big Joe Pallet Mover works just like a conventional lift truck but features an intuitive user interface, onboard computer, LiDAR, and camera system to transport and drop pallets to locations autonomously once the operator loads it up and selects a mission. This collaborative approach uses self-driving technology as a productivity force multiplier by giving workers the ability to focus on higher-value tasks or direct multiple independent workflows concurrently. With the ability to use the machine in manual mode at any time, the flexibility of the Pallet Mover AMR allows it to bring efficiencies to facilities without intensive changes to their operations or need for any infrastructure other than a wi-fi connection for software updates if desired.
AMR Pallet Mover User Directed
Easy To Set-Up, Map & Start Missions In Less Than 1 Hour!
Developed in partnership with Thoro.ai, the Big Joe Pallet Mover AMR is an easy to deploy solution for autonomous floor-to-floor pallet transportation and drop-off that companies can set up and put into operation in less than 1 hour. This new Big Joe unit seeks to revolutionize on-demand material handling across a broad number of industries by offering self-driving technology at an accessible price point on one of the most common material handling vehicles, an electric pallet truck.
The AMR Features:
- 4,400lb Capacity with Autonomous Travel Speed of up to 2.8 MPH
- Intuitive Touch Screen User Interface
- Integrated 205AH UL Recognized Li-ion Battery and 120vac Charger
- Control Head Beacon
- Blue Light
- Stereoscopic Camera
- 270 Degree Forward Facing LiDAR
- Low-profile Forks: 3″ to 7.6″ Elevation
- Compact Rider Platform

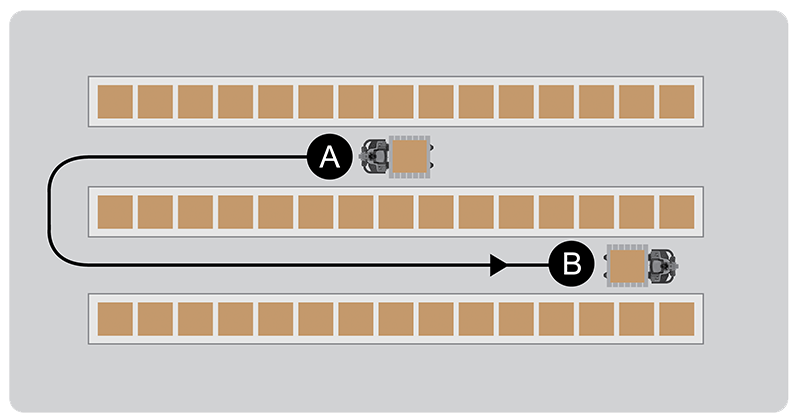

GO TO LOCATION
The Go to Location Function is the most basic operation, essentially shuttling from waypoint to waypoint, with direct operator input at both start and finish. Once at the pre-set location, it will wait for the operator to give it the next task. The Pallet Mover AMR will not drop a pallet in Go to Location mode.

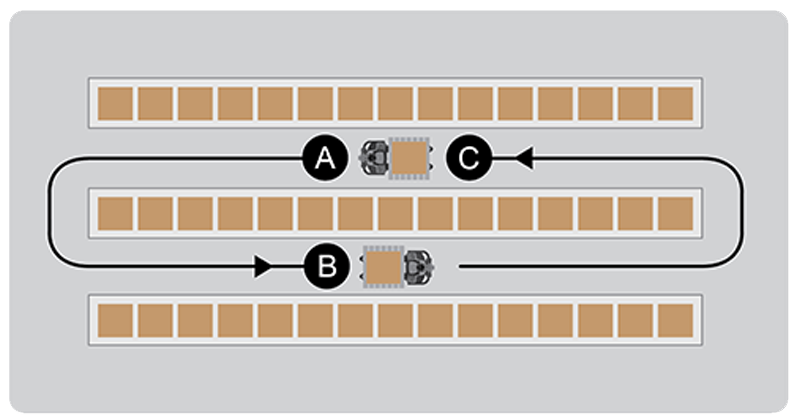

DROP AND RETURN
Drop & Return is the next level of operation, where the unit will navigate to the pre-set waypoint, drop a pallet and return unladen to the start location.

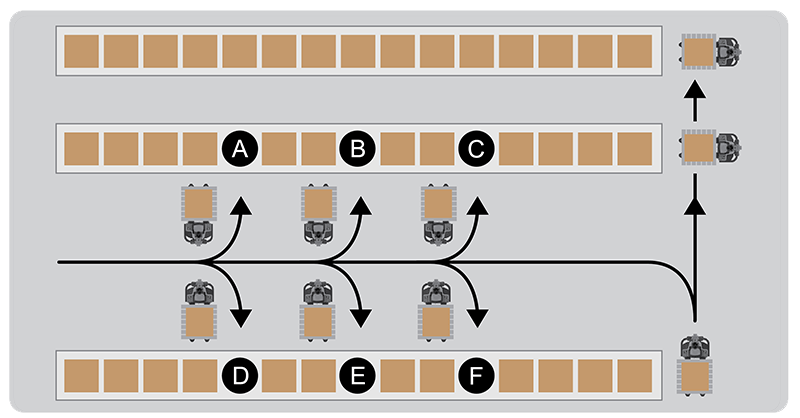

ZONE DROP
Zone Drop is an advanced level of operation where the Pallet Mover AMR will travel to a defined “zone” and drop a pallet in the first location from a pre-set group, based on user priority. It will then return unladen to the start location.

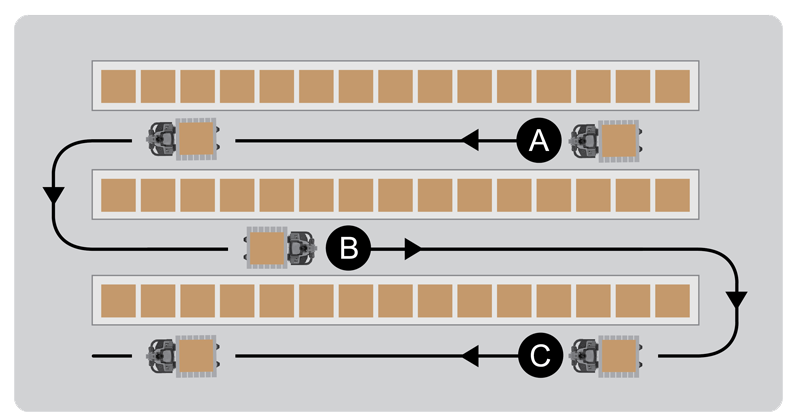

MISSIONS
You can build and save Missions using a series of waypoints, including Drop Zones, and operator interactions. Missions are used to send the Pallet Mover AMR into your facility on a specified route, to a number of waypoints, where it will either wait for an operator interaction, drop a pallet, or proceed to the next waypoint, depending on mission settings.

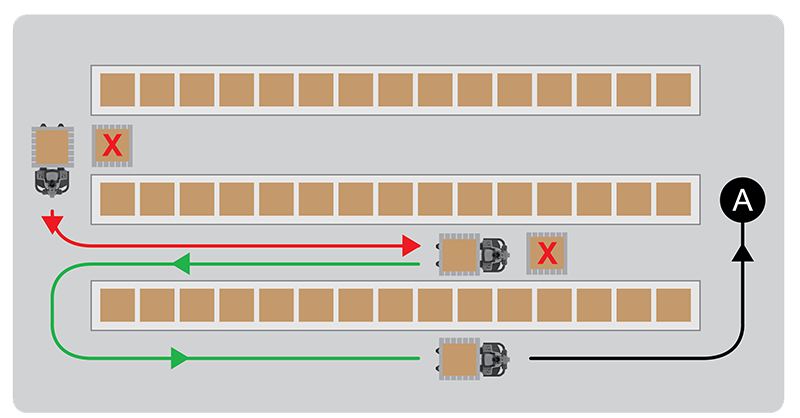

DYNAMIC MAPPING & ROUTING
You can build and save Missions using a series of waypoints, including Drop Zones, and operator interactions. Missions are used to send the Pallet Mover AMR into your facility on a specified route, to a number of waypoints, where it will either wait for an operator interaction, drop a pallet, or proceed to the next waypoint, depending on mission settings.
