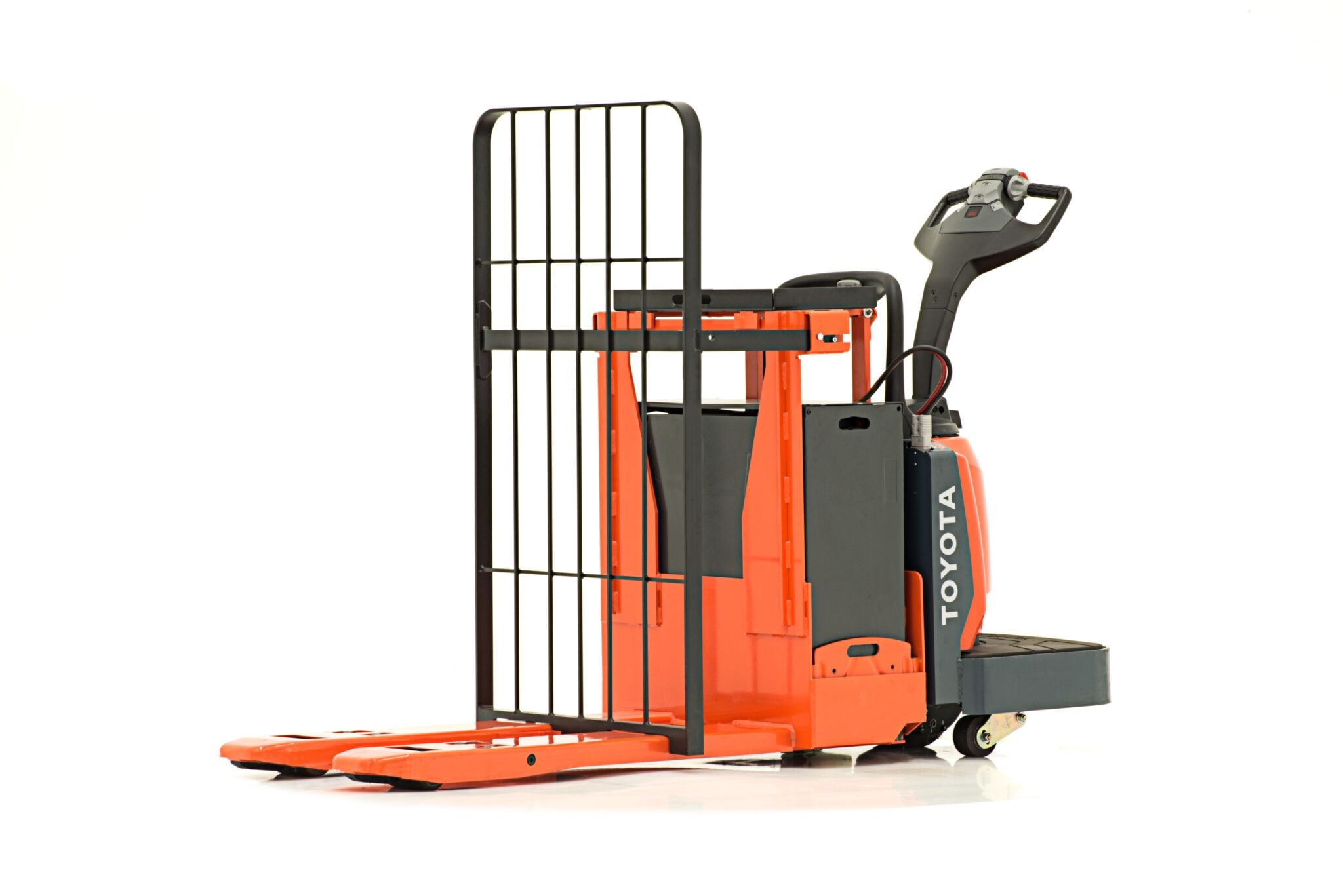

End-Controlled Rider Pallet Jack

The Toyota End-Controlled Rider pallet jack is easy to maneuver and quick to respond to commands. The End-Controlled Rider, ideal for longer runs, makes moving product throughout the warehouse efficient and enjoyable. Doubling as a ground-level order picker, the End-Controlled Rider pallet jack is an asset to any warehouse or distribution center.

Download the spec/info sheet

Warehouse Space Planning

  • Galvanized option for wet or cold climates
  • Up to 8,000 lbs. Carrying Capacity
  • 96″ forks option for order picking

Option for Cold Climates

Toyota’s End-Controlled Rider Pallet Jack offers various solutions for extreme climates, including galvanized options, cold conditioning packages and ergonomic features to accommodate heavy gloves.

360-Degrees of Quality, Durability, Reliability & Value

  • AC Drive System
  • 24-Volt Electrical System
  • Regenerative Braking
  • Programmable Performance
  • Controller Area Network (CAN-bus) Communications
  • Welded Construction with Reinforced Heavy-Duty Bumper
  • Box Rail Fork Construction

Ease of Service

  • AC Drive Motor (No Brushes or Commutator)
  • Self-Adjusting Electric Disc Brake
  • One-Piece, Lightweight Service Access Cover
  • Teflon® Coated PolyLube™Lift Linkage Bushings (Maintenance Free)
  • Error Indicator with Self-Diagnostics

Continued Performance

According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota End-Controlled Rider Pallet Jack operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the End-Controlled Rider Pallet Jack can be an asset for your company for years to come.

Key Safety Features

End-Controlled Rider Pallet Jack

  • STABILITY HAND RAIL WITH LIFT, LOWER, HORN AND HIGH-SPEED FUNCTIONS
  • WRAP-AROUND HAND GUARD
  • SPRING-LOADED CONTROL HANDLE
  • RUNAWAY PROTECTION
  • DIRECTIONAL REVERSE SWITCH ON CONTROL HANDLE
  • ELECTRIC HORN

End-Controlled Rider Pallet Jack Ergonomics

  • Multifunction Control Handle with Ergonomically Angled Hand Grips and Wrap-Around Hand Guard
  • Dual Thumb Wheels with Twist Grips for Directional Control and Travel Speed
  • Intuitively Positioned Lift/Lower and Horn Buttons (Horn Button on 8TB50 Only)
  • Soft-Cushioned Rider Platform
  • Low Platform Step Height



END-CONTROLLED RIDER PALLET JACK

MODEL NUMBER LOAD CAPACITY* (LBS.) MAX. TRAVEL SPEED FULL LOAD (MPH) MAX. LIFT SPEED FULL LOAD (FPM) MAX. GRADEABILITY FULL LOAD (%) BASIC RIGHT ANGLE STACK** (IN.)
8HBE30 6000 6.2 N/A 10 85.4
8HBE40 8000 6.2 N/A 10 129.3
