The Toyota High-Capacity Large Cushion Forklift is our impressive THD power for indoor use. It is suitable for the automotive and forging industries, as well as for handling huge paper rolls, steel, and raw materials, all of which demand the reliable power that Toyota provides.

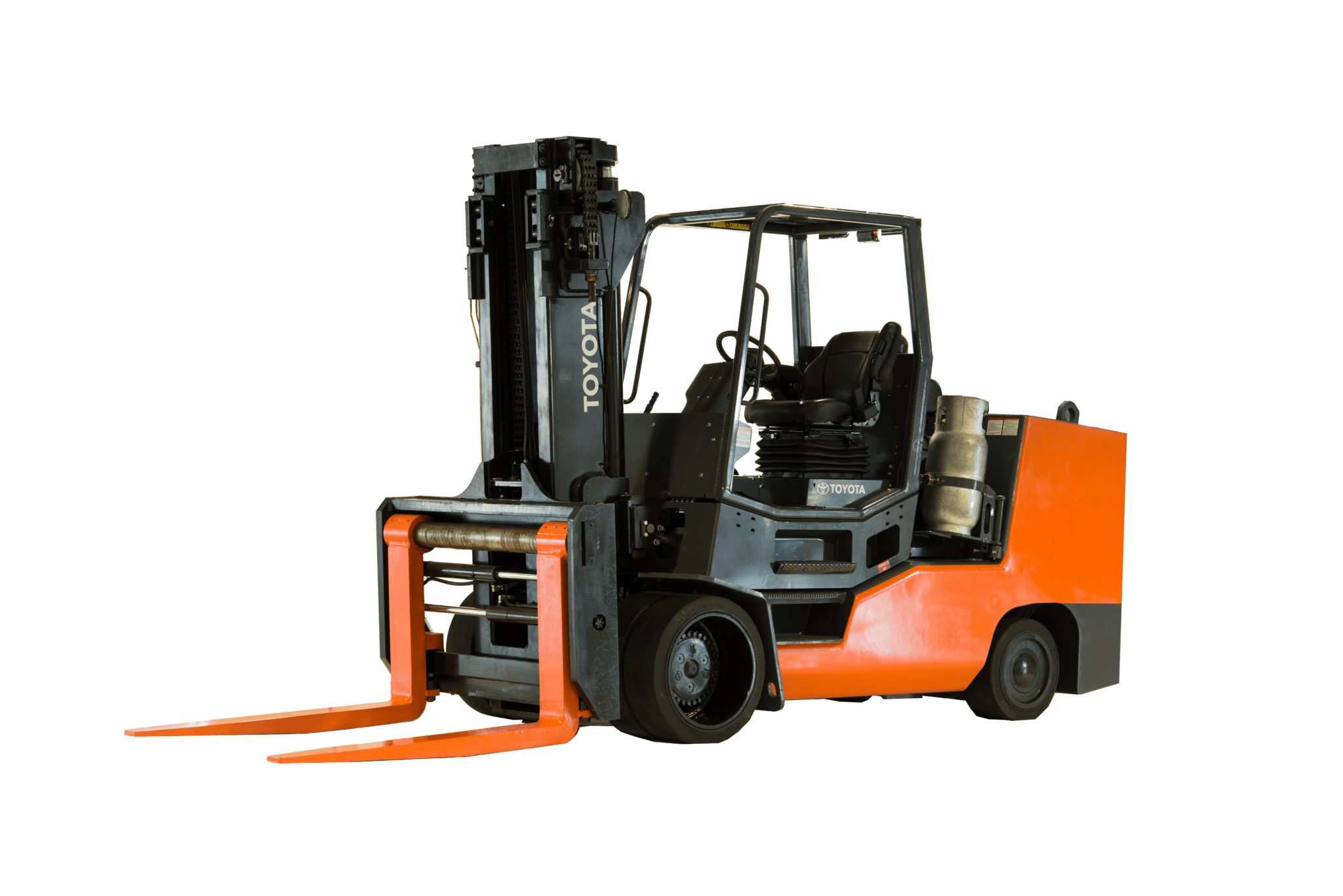

High-Capacity Large Cushion Forklift
Toyota knows that sometimes hauling high-capacity loads is an inside job. The Toyota High-Capacity Large IC Cushion Forklift is an indoor mammoth of a machine. Ideal for automotive environments and for moving steel inside manufacturing facilities, it gives you the ability to lift up to 80,000 lbs. of the toughest loads around. And with one of the leading engines in its class, the Toyota High-Capacity Large Cushion Forklift is as dependable as it is strong.
SPECIAL FEATURES
- 25,000 – 80,000 lb. Lifting Capacity
- High-Capacity Cooling System
- 7 L V8 Engine
WORLD-CLASS WEIGHT LIFTER
The High-Capacity Large IC Cushion Forklift is king when it comes to heavy lifting indoor tasks. Whether steel needs moved, or engines need shipping, the High-Capacity Large IC Cushion Forklift is ready to muscle its way through your daily task list. This forklift has the power of a V8 engine and Dana Transmission with three forward and reverse speeds, along with engine diagnostics and support systems to back it all up.
HIGH-CAPACITY LARGE IC CUSHION FORKLIFT FEATURES
360 Degrees of Quality, Durability, & Value
Toyota’s High-Capacity Large IC Cushion Forklift comes with a V8 LP engine and heavy-duty planetary drive axle. This product comes with a digital instrument display that gives fuel, engine, transmission, battery,
service, and temperature information. The High-Capacity Large IC Cushion Forklift has a two-stage wide visible mast to provide unobstructed views so you can get work done.
Key Safety Features
Safety features on the High-Capacity Large IC Cushion Forklift include an operator presence sensing system (OPSS), which is built under the seat of the forklift and detects the operator’s presence while in operation. This forklift also includes a neutral safety switch, and an operator restraint system.
Engineered for Operators
That strength comes with plenty of support. An engine management system protects your forklift and keeps delivering the same high-performance work you expect. The digital instrument display keeps you aware of the operating status. Standard fingertip controls provide convenient, comfortable control of all functions for operators, and the high-visibility design help keep operators aware of their surroundings.
High-Capacity Large Cushion Forklift
| Model | Load Capacity (lbs.) | Max Travel Speed Full Load (MPH) | Max Lift Speed Full Load (FPM) | Max Gradeability Full Load (%) | Basic Right Angle Stack (in.) |
| THDC2500-24 | 25,000 | 9.7 | 61 | 73.7 | 167 |
| THDC2500-30 | 25,000 | 9.7 | 61 | 69.9 | 167.1 |
| THDC3000-30 | 30,000 | 9.7 | 61 | 64.7 | 174 |
| THDC3000-24 | 30,000 | 9.7 | 61 | 67.1 | 167 |
| THDC3000-36 | 30,000 | 9.7 | 58 | 61.2 | 174.3 |
| THDC3500-24 | 35,000 | 9.7 | 58 | 62.9 | 174.3 |
| THDC4000-30 | 40,000 | 9.7 | 41 | 49.8 | 184.2 |
| THDC4000-36 | 40,000 | 9.7 | 41 | 47.4 | 186 |
| THDC4500-30 | 45,000 | 9.7 | 41 | 46.6 | 186 |
| THDC4500-36 | 45,000 | 10.3 | 20 | 35.3 | 217.5 |
| THDC5000-30 | 50,000 | 10.3 | 20 | 34.7 | 217 |
| THDC5000-36 | 50,000 | 10.3 | 20 | 33.3 | 217.5 |
| THDC5500-36 | 55,000 | 10.3 | 20 | 31.5 | 217.5 |
* Based on 24″ Load center ** Add load length and clearance
| Model Number | THDC2500-24, THDC2500-30, THDC3000-24, THDC3000-30, THDC3000-36, THDC3500-24, THDC4000-30, THDC4000-36, THDC4500-30, THDC4500-36, THDC5000-30, THDC5000-36, THDC5500-36 |
|---|---|
| Load Capacity | 55,000LB |
| Max Travel Speed Full Load | 10.3 |
| Max Lift Speed Full Load | 61 |
| Max Gradeability Full Load | 73.7 |
| Basic Right Angle Stack | 217.5 |
