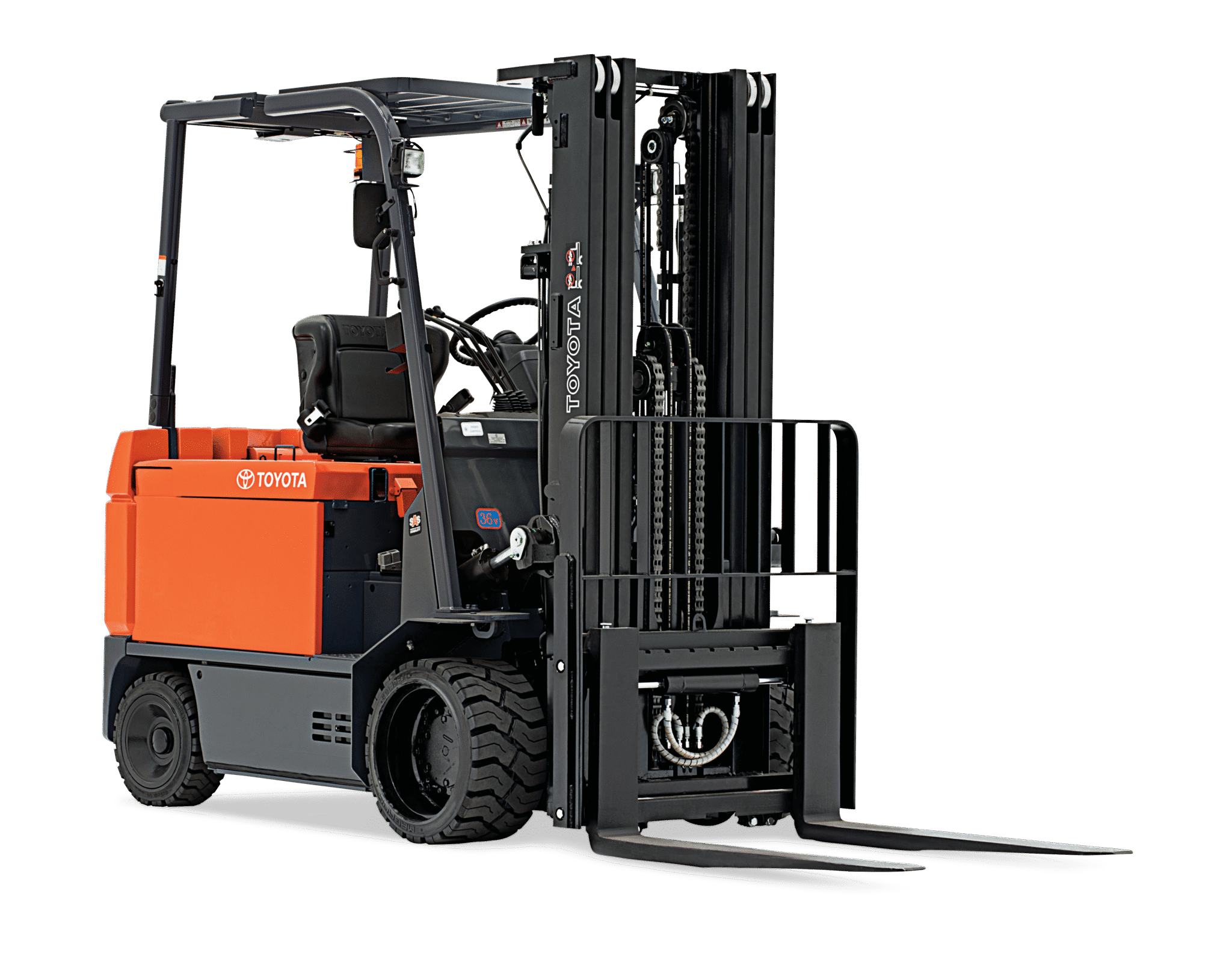

Large Electric Forklift

Toyota’s Large Electric Forklift gets the job done quietly and reliably. With 12,000 pounds of lifting power, it’s a zero-emissions ride that is perfect for any warehouse, even in the food and beverage industries. This ruggedly designed electric forklift has been built to withstand your toughest jobs while keeping the operator comfortable and productive.

Download the spec/info sheet

Special Features

  • 8,000-12,000 lb. Lifting Capacity
  • System of Active Stability (SAS)™
  • AC Drive Motor

Proven Powerhouse

Toyota’s energy-efficient AC motor makes the Large Electric Forklift the perfect high-capacity solution for lifting and loading heavy weights. This forklift is an environmentally friendly, emission-free solution for sensitive applications. Smoother acceleration, increased uptime, and less frequent scheduled maintenance are also part of the package. Toyota’s Large Electric Forklift speaks softly but carries a heavy load.

Designed for Comfort

The Large Electric’s operator compartment is designed to make the forklift work as an extension of the operator’s body. With intuitive, well-placed controls. Easy-to-read displays. And clear sightlines all around. Equally important, the operator compartment is also designed for comfort, even over a long shift – with a premium seat, low entry and exit steps, and a heavy-duty non-slip floor mat to minimize noise, heat, and vibration.

Key Safety Features

Safety features on the Large Electric Forklift include Toyota’s System of Active Stability (SAS)™, which automatically detects potentially unsafe conditions and engages additional safety features for increased operator protection and reduced product and forklift damage. This forklift also comes with welded, roll-formed overhead guard pillars to provide maximum operator protection with superior entry/exit and load visibility. Additional features include:

  • Operator Presence Sensing System (OPSS)
  • Key Lowering Interlock
  • Double-Action Parking Brake
  • Electric Horn

Ease of Service

Toyota’s Large Electric Forklift is built with superior components and meticulously engineered integrated systems that deliver intuitive, dependable performance daily. Toyota Forklifts don’t often require service, but when they do, it’s fast and easy — by design. Legendary Toyota quality means more productivity over the lifecycle of your forklift, along with lower repair costs. Toyota’s Large Electric Forklift comes with easy-to-access hydraulic motor and controller along with a no-tools required floorboard along with a planned maintenance indicator.

Large Electric Forklift

Model Load Capacity (lbs.) Max Travel Speed Full Load (MPH) Max Lift Speed Full Load (FPM) Max Gradeability Full Load (%) Basic Right Angle Stack (in.)
7FBCU35 8,000 8.4 (36V), 10.9 (48V) 51.2 (36V), 72.9 (48 V) 16 (36V), 22 (48V) 102.6
7FBCU45 10,000 7.8 (36V), 10.9 (48V) 43 (36V), 57 (48V) 13 (36V), 18 (48V) 106.7
7FBCU55 12,000 7.5 (36V), 9.3 (48V) 37 (36V), 53 (48V) 14 (36V), 20 (48V) 116.9

* Based on 24″ Load center ** Add load length and clearance

Max Travel Speed Full Load

7.5 (36V), 10.9 (48V)

Load Capacity

8000 (36V), 12000 (48V)
